Features

Specifications

Type: Fiber Optic Cable

Number Of Conductors: 1

Product Name: SC Optical Fiber Drop Cable

Use: FTTH

Core Type: Single Mode/Multimode

Patch Cord Wavelength: 1310/1550nm

Connector Type: SC/APC-SC/APC (UPC Optional)

Color: Yellow/orange/Aqua

No. Of Fiber: 1

Surface Level: PC/UPC/APC

Outer Sheath: PVC/LSZH

High Light:

G657A Fiber Cable Patch Cord

2 Core Fiber Cable Patch Cord

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: ISO9001,ROHS, RoHS, ce

Model Number: SC

Payment & Shipping Terms

Packaging Details: each one in plastic bag

Payment Terms: T/T, Western Union

Supply Ability: 50000 Piece/Pieces per Day

Gallery

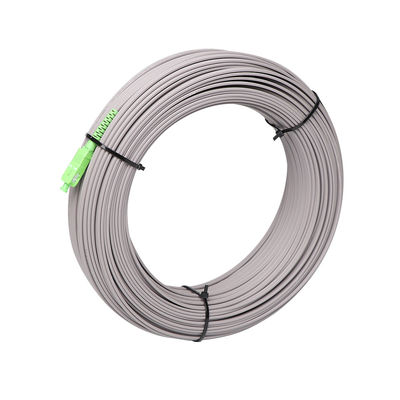

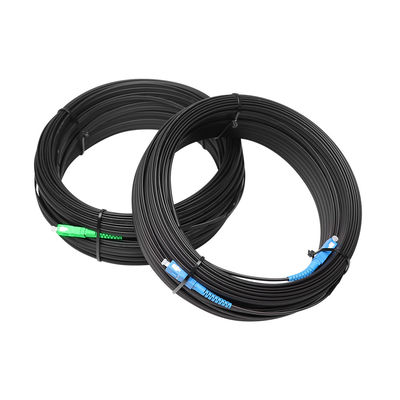

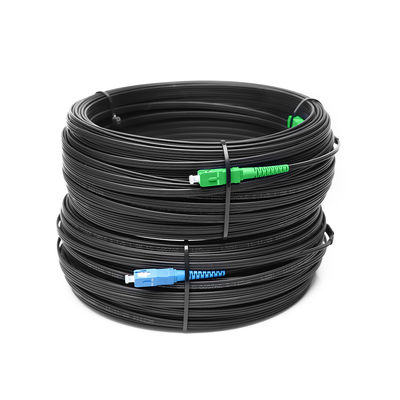

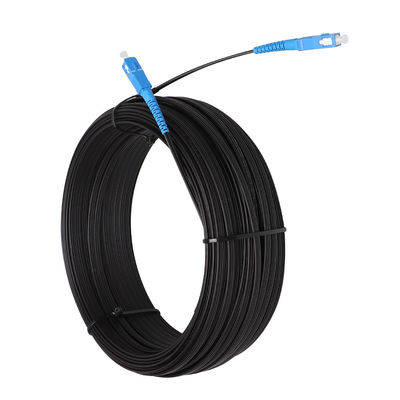

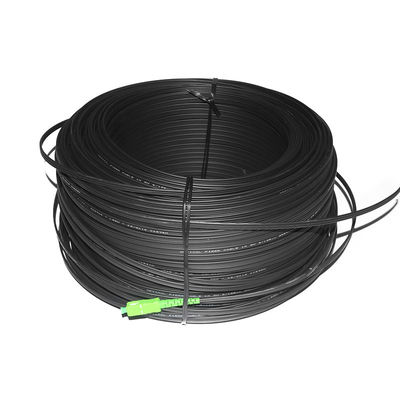

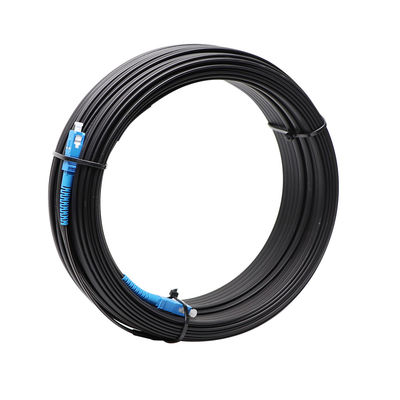

SC UPC APC FTTH Fiber Cable Patch Cord 2 Core G657A Simplex For Indoor Outdoor

Product Description

SC UPC APC Single Mode G657A Simplex 1core 2core Indoor outdoor FTTH Drop fiber optic Patch cord

Product Description

SC/PC APC Pigtail GJYXFCH Type Fiber Optic Drop Cable Patch Cord

(1) FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building.
(2) FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.
(3) FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12.
(4) FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.

FEATURES

1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

APPLICATION

1.Access Network
2.Telecom/CATV Systems
3.FTTx

FTTH drop cable fiber optic patch cord Performance Parameter
Name	FTTH drop cable fiber optic patch cord
Ferrule type	zirconia ceramics ferrule
IL	≤0.3dB	RL	≥55dB
Fiber core	1,2,4 to 12	Durability	≥1000 times
Jacket	3.12.0 or 5.02.0mm PVC or LSZH	Wavelength	1310 1550nm
Length	1~1000 meter	Working temperature	-40℃~+80℃
