0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector

500 pieces
MOQ
$16.30/pieces 500-999 pieces
Price
0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Type: PLC Splitter, LC/APC
Product Name: 1x32 Mini Type PLC Splitter
Fiber Type: G657A1 Or As Customers' Order
Diameter: 0.9mm
Operating Wavelength(nm): 1260~1650
Return Loss (dB): 55/50
Operating Temperature: -40~+85
Directivity (dB): ≥ 55
Length: 1m/1.5m
Packing: Package: 1 Pc/ Box, 20 Pcs/carton Or As Your Requirement
High Light:

Fiber Optic Splitter 1x32

,

Steel Tube Fiber Optic Splitter

,

APC 1x32 fiber splitter
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: LC APC PLC
Payment & Shipping Terms
Packaging Details: 1 pc/ box, 50 pcs/carton or as your requirement
Payment Terms: T/T, Western Union
Product Description
1x32 Steel Tube Packing PLC Splitter with LC/APC Connector
PLC optical splitter made by the semiconductor process. Optical wave guide needle is located at the top of the chip, in the chip to achieve shunt, PLC optical splitter can be divided into cassette, chip, rack, etc type.
1.Mini type PLC Splitter's input and output tube diameter is 900um
2.Compact size, compare to the other PLC Splitter, Mini PLC Splitter's structure is smaller

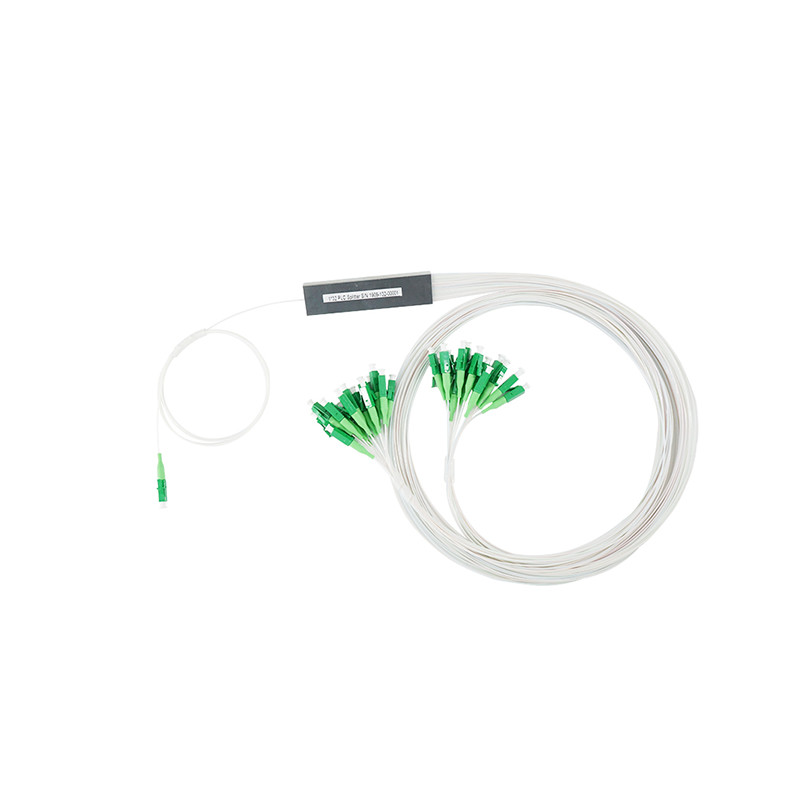

0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 0

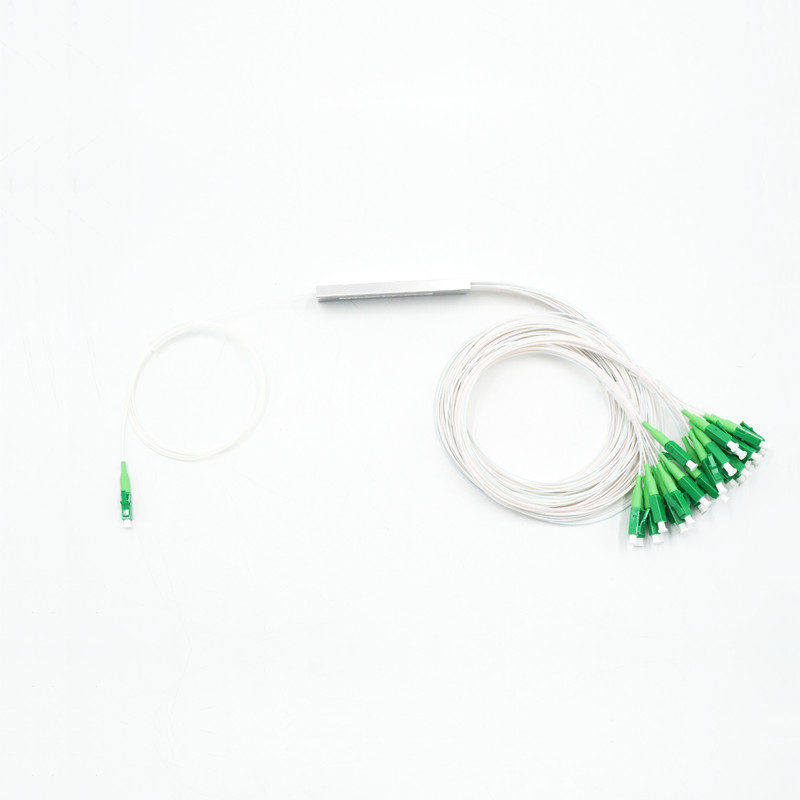

0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 1

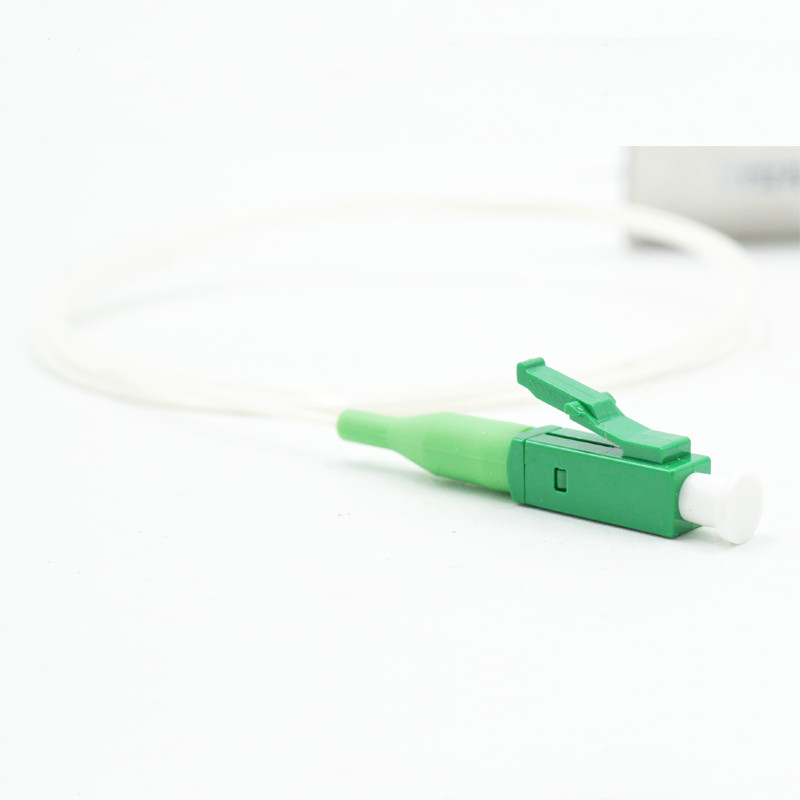

0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 2
SPECIFICATION
1xN PLC Splitter Specification







Operating Wavelength
1260~1650(nm)






Fiber Type
G657A1 or as customers' order






Port Configuration
1x2
1x4
1x8
1x16
1x32
1x64
1x128
Insertion Loss (dB)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50






Operating Temperature
-40~+85






Directivity (dB)
≥ 55






Storage Temperature
-40~+85






PACKAGE WAY

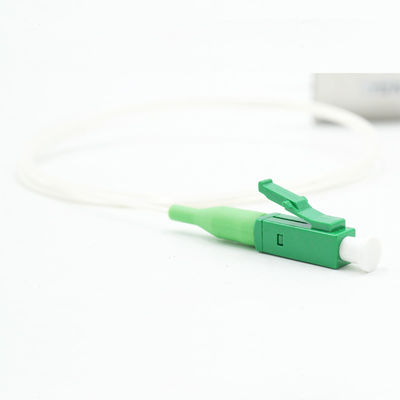

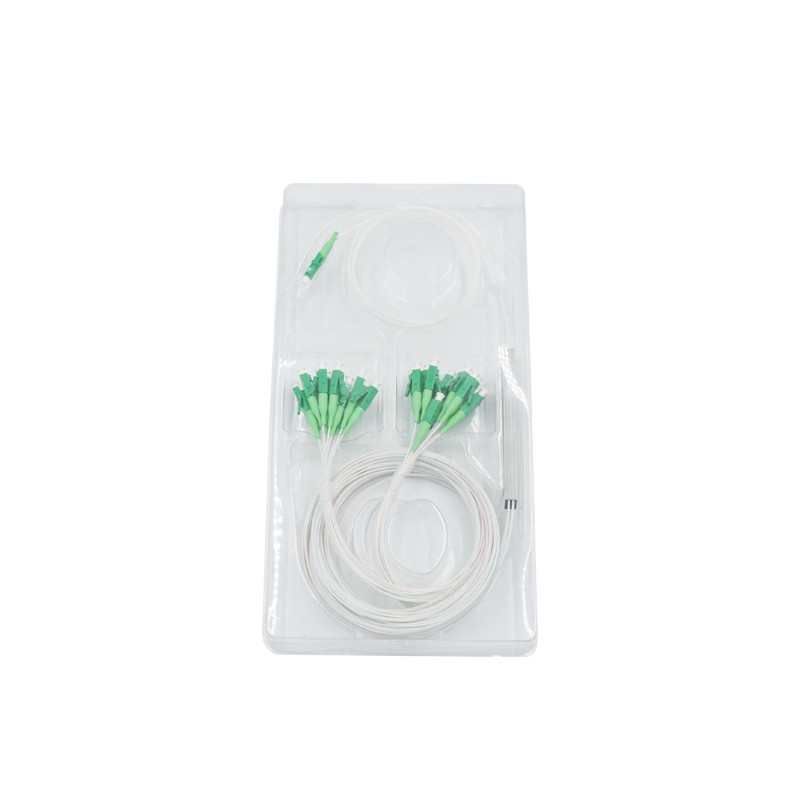

0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 3
APPLICATION
0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 4

1.FTTx Deployments(GPON/BPON/EPON)
2.Cable television (CATV)
3.Local area networks (LAN)
4.Test equipment
5.Passive optical networks(PON)

REAL PICTURES

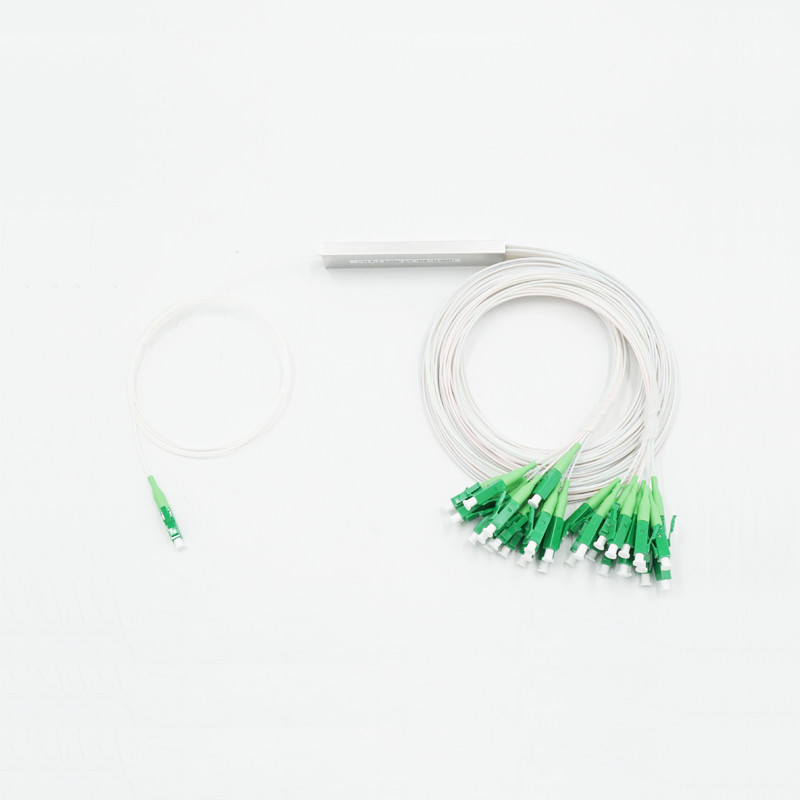

0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 5

0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 6
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 7
0.9mm Steel Tube Fiber Optic Splitter 1x32 With LC APC Connector 8
FAQ & Contact
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
