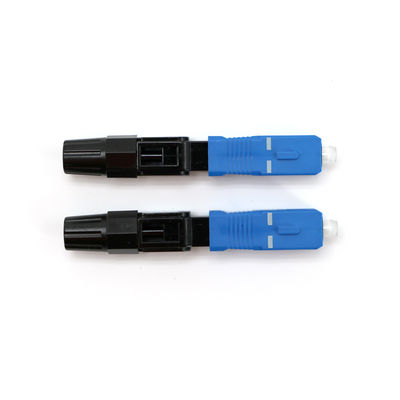

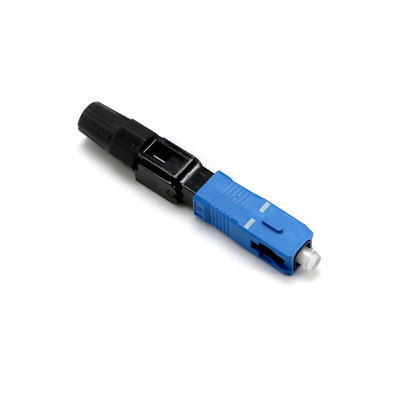

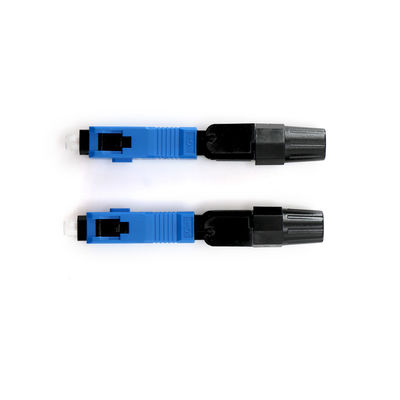

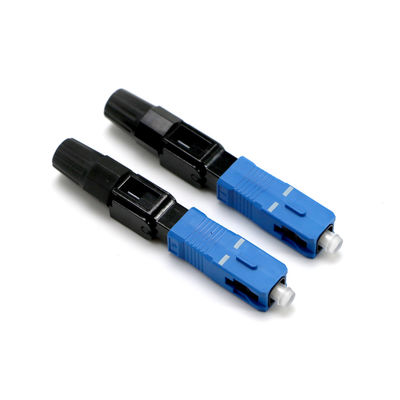

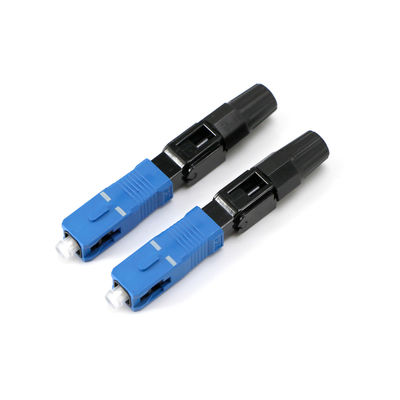

Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens
Features:
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Boots in a variety colors
4. Telcordia style boots
5. Free-floating ceramic ferrule
6.The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit.
7.Clips are avaliable for SC and LC duplex connector.
8.PC and APC, UPC are availiable.
9. Good exchange ability and good durability
Applications:
1. FTTH
2. WAN
3. LAN
4. Telecommunication
5. CATV
6. Optical Distribution Frame
Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
Product Details
| Item | fast connector |
| Cable Scope | 0.9mm, 2.0mm, 3.0mm round cable and 3.0 x 2.0 mm drop cable |
| Length | 45mm |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≤ -50dB for UPC, ≤ 55dB for APC |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test | IL ≤ 0.3dB |
