Name: Single Tube Singlemode FTTH Solution Cable OptiTap To SC APC Jumper Type
Brand: ODM/OEM
SKU: SC/APC
Price: 5.50 USD
Availability: InStock
Rating: 4.9 (135 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: FTTx Solutions

Use: FTTH, FTTH

Connector B Type: OptiTap

Connector A Type: SC/APC

Product Type: FTTH Drop Cable Assemblies

Application: FTTA BBU RRU

No. Of Fiber: 1.

Cable Diameter: 3.0mm,4.8mm Or 7.0mm

Fiber Type: Singlemode

Fiber Brand: Corning, YOFC, OFS

Length: Customized

High Light:

Singlemode FTTH Solution Cable

Single TubeFTTH Solution Cable

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: SC/APC

Payment & Shipping Terms

Packaging Details: 1pc/PE bag<br>according to customer's request.

Payment Terms: T/T, Western Union

Supply Ability: 20000 Piece/Pieces per Quarter

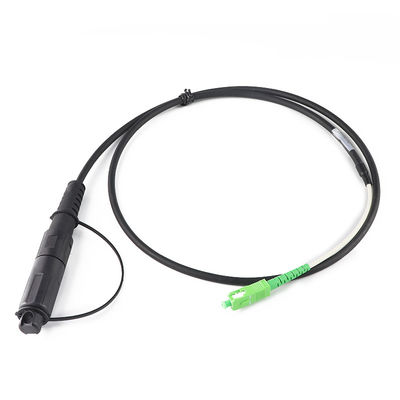

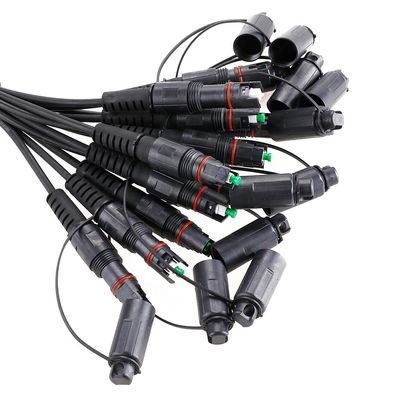

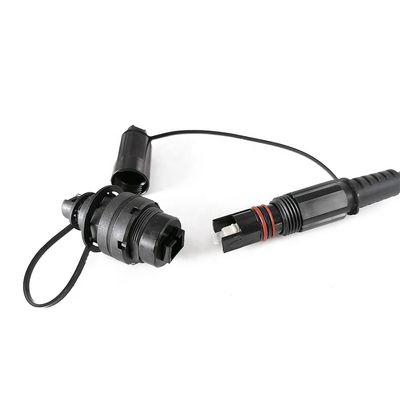

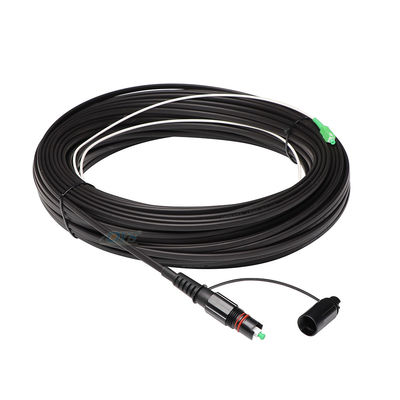

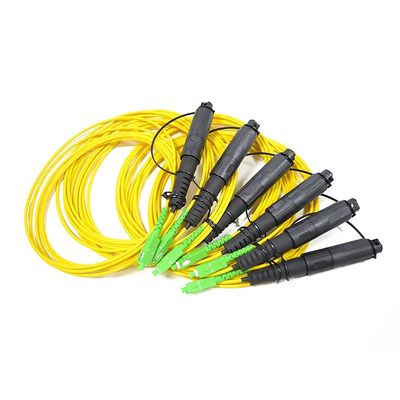

Gallery

Single Tube Singlemode FTTH Solution Cable OptiTap To SC APC Jumper Type

Product Description

1 Fiber Single-Tube Singlemode Cable OptiTap To SC/APC Jumper

Product Description

Hoptic assemblies matching with Corning Optitap

H optic assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H optic connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H optic connector provides an ideal solution for direct burial, conduit, or aerial installations.

Benefits

Allows flexibility to use factory terminated assemblies Provides superior weather resistance for FTTH and other outdoor applications Ensures functionality in harsh weather environments Can be used with industry standard cable designs Easily installs without special tooling Threaded style coupling Provides bend protection for installation and long term use

Features

Single fiber, SC-based connector Bird proof and rodent resistant IP68 water and dust protection Low profile in-line receptacle available No installation tools required 100 minimum mating cycles In-line connection available Operating temperature: -40° to 85°C Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm 33 lb. axial cable retention (150N)

Applications

FTTH Outdoor Areas Harsh Environment

Type	SM-UPC			SM-APC			MM-UPC
Type		Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB			≥30dB			≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
