Name: 144 Cores 19" 1U MTP Fiber MPO Patch Panel With 4pcs OM3 MTP-LC Cassettes
Brand: ODM/OEM
SKU: 1U
Price: 25.00 USD
Availability: InStock
Rating: 4.8 (123 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Racks & Enclosure

Use: FTTX

Feature: High Density

Connector Type: MTP,MPO,ST,LC,LC,SC

Application: Telecommunication

Wavelength: Full Wavelength

Fiber Type: SM/MM

Insertion Loss: Standard Loss And Elite

No. Of Fiber: 144

Material: Cold Rolled Steel

Storage Temperature: -40 ~ +70°C

High Light:

144 Cores MPO Patch Panel

Fiber MPO Patch Panel

OM3 mtp fiber patch panel

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: 1U

Payment & Shipping Terms

Packaging Details: Individual box or according to customer's request

Payment Terms: T/T, Western Union

Supply Ability: 100 Piece/Pieces per Day

Gallery

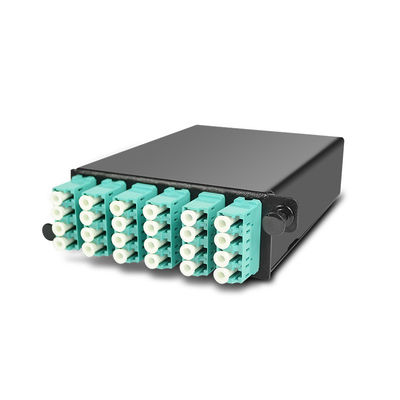

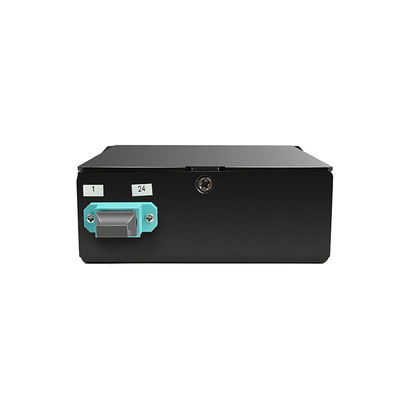

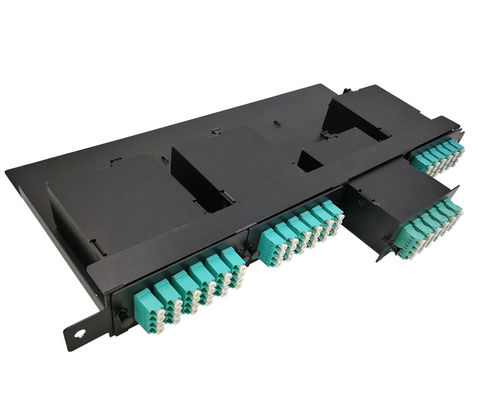

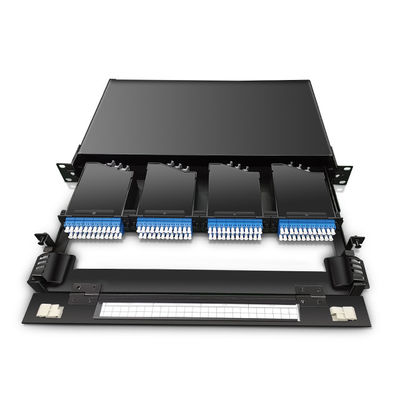

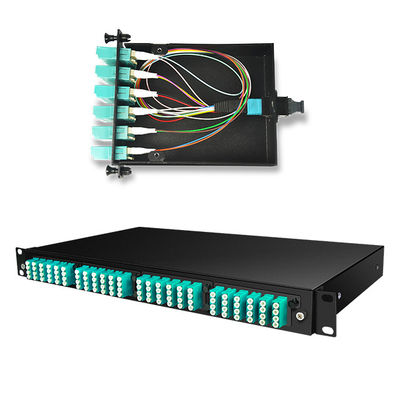

144 Cores 19" 1U MTP Fiber MPO Patch Panel With 4pcs OM3 MTP-LC Cassettes

Product Description

144 Cores 19"1U Black Rack Mounted MPO MTP Fiber Patch Panel With 4pcs OM3 MTP-LC Cassettes

MPO pre-terminated ultra-high-density wiring box, 19-inch, 1U height up to 144 cores, and can be used in high-density wiring applications such as computer centers, computer rooms, and databases. The front and rear removable top cover, pull-out double guide, detachable front bezel, ABS lightweight module box and other technical applications make the SP12M1 easy to use in high-density scenes whether it is in the cable or cable. SP12M1 has a total of E-layer trays, each with independent aluminum guide rails, and the sliding distance is 1 10mm. Four MPO module boxes are installed on each tray, and each module box is installed with 6 DLCs and 12 cores. Each module box has a separate ABS rail for easy sliding installation without restrictions.

Features

1. Ultra-high density wiring application scenario

2. Standard 19-inch width 3

. Ultra high density 1∪144 core

4. Double rail design for easy installation and maintenance

5. Lightweight ABS material MPO module box

6. Spray surface treatment process 7. Customizable color and silk screen LOGO

Technical indicators

Execution standard: YD/T 778 optical distribution frame Operating temperature: -5 ° C ~ +40 ° C; storage temperature: -25 ° C ~ +55 ° C Salt spray experiment: 72 hours Relative humidity: ≤95% (at +40 °C) Atmospheric pressure: 76-106kpa Withstand voltage level: ≤3000V (DC), 1 min without breakdown, no arcing insulation resistance: ≥1000M9/500V (DC) Insertion loss: UPC≤0.2dB; APC≤0.3dB Return loss: UPC≥50dB; APC≥60dB Insertion durability: ≥1000 times Adhesion: ISO rating: Level 1; ASTM rating: 4B.

Type	Single Mode			Single Mode			Multi Mode
		(APC Polish)			(UPC Polish)			(PC Polish)
Fiber Count	8,12,24 etc.			8,12,24 etc.			8,12,24 etc.
Fiber Type	G652D,G657A1 etc.			G652D,G657A1 etc.			OM1,OM2,OM3 etc.
Maximum Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
			Low Loss				Low Loss		Low Loss
		≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB			≥60 dB			NA
Durability	≥500 times			≥500 times			≥500 times
Operating Temperature	-40℃ ~ +80℃			-40℃ ~ +80℃			-40℃ ~ +80℃
Test Wavelength	1310nm			1310nm			1310nm
